Converting values with EF

Daily Knowledge Drop

An EntityFramework ValueConverter can be used to convert a property from one value or type to another when reading to and writing from the database.

Example

In the example, the C# class has a DateTime property, however when saved in the database, this property will be stored as a long (BIGINT in SQL) - a value representing the DateTime as ticks.

Scaffolding

The Blog class looks as follows:

[Table("Blog")]
public  class Blog
{
    public int Id { get; set; }

    public string Title { get; set; }

    public string Description { get; set; }

    public DateTime DateCreated { get; set; }
}

As one can see, the DateCreated is of type DateTime.

The DBContext implementation is configured as per usual:

public class DemoContext : DbContext
{
    public DbSet<Blog> Blogs { get; set; }

    protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
    {
        optionsBuilder.UseSqlServer(
            @"Server=.\SQLEXPRESS;Database=ValueConverter;Integrated Security=True;TrustServerCertificate=True");
    }
}

Definition

The first step is to define the ValueConverter - this is done by inheriting from ValueConverter<TModel, TProvider>.

The converter defined below will:

• Provide functionality to convert from DateTime to long when writing to the database
• Provide functionality to convert from long to DateTime when reading from the database

internal class DateCreatedConverter : ValueConverter<DateTime, long>
{
    // constructor calls into the base constructor
    // with the two methods to do the conversion
    public DateCreatedConverter()
    : base(modelValue => ToTicks(modelValue),
        provValue => ToDateTime(provValue)) { }

    // convert a long to DateTime - for when reading
    // from the database
    private static DateTime ToDateTime(long ticks)
    {
        return new DateTime(ticks);
    }

    // convert a DateTime to long - for when writing
    // do the database
    private static long ToTicks(DateTime datetime)
    {
        return datetime.Ticks;
    }
}

The base ValueConverter<DateTime, long> constructor takes two parameters - two Expressions for doing the conversion between the values. Our class defines two methods defining the logic for how the conversion is to the happen, and then passes these methods to the base constructor.

The same blueprint can be used to define more complex conversions between property values.

Registration

Now that we have the converter defined, the next step is to register it with the Entity Framework infrastructure. This is done either in an IEntityTypeConfiguration implementation for the specific entity, or in this example, in the OnModelCreating method of the DbContext:

public class DemoContext : DbContext
{
    public DbSet<Blog> Blogs { get; set; }

    protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
    {
        optionsBuilder.UseSqlServer(
            @"Server=.\SQLEXPRESS;Database=ValueConverter;Integrated Security=True;TrustServerCertificate=True");
    }

    protected override void OnModelCreating(ModelBuilder modelBuilder)
    {
        // define that the specific property
        // on the specific entity has the converter
        modelBuilder.Entity<Blog>()
            .Property(b => b.DateCreated)
            .HasConversion<DateCreatedConverter>();

    }
}

Here, the specific property on the specific entity is specified to have the converter.

That's all there is to it! Entity Framework will now automatically apply the conversion when reading to and writing from the database.

Usage

When interacting with the database using Entity Framework, the ValueConverter is automatically used. This includes when creating the table based on the entity schema:

Blog blog = new Blog
{
    Id = 1,
    Title = "My first post",
    Description = "My very first blog ever!",
    DateCreated = DateTime.Now,
};

DemoContext context = new DemoContext();
context.Database.EnsureCreated();
await context.Blogs.AddAsync(blog);
await context.SaveChangesAsync();

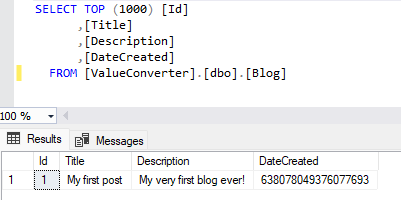

If we look at the data in the database, the DateCreated property is stored as a BIGINT (the SQL equivalent of a long):

Notes

A very useful feature when needing to convert data/value types between code and the database - some relatively simple configuration, and Entity Framework takes care of the rest.

References

Value converters in Entity Framework Code (EF Core)
