Using XML documentation comments to enrich code

How XML documentation features can use to enhance the usability of code

Home DailyDrop

Daily Knowledge Drop

There are a number of features as part of the C# XML documentation comments (comments prefixed with ///), which can use used to improved the useability of code. In additional to providing commentary on a class or method etc, there is also the ability to:

  • link to external URLs
  • add general remarks to the comments
  • share comment blocks between methods
  • reference a parameter by name
  • highlight language keywords

All of these can be used to enhance the overall quality and usability of the code, especially if the code is part of a library to be referenced and used by external projects.


External Urls

The seealso keyword can be used to create a clickable link.

Assume we want to put a URL in a method comment section:

/// <summary>
/// Does some work. See www.alwaysdeveloping.net for more information
/// </summary>
public Task DoWorkAsync()
{
    return Task.CompletedTask;
}

With this, the URL is present in the comments, but is not clickable:

Url in comment

Updating the comments to instead used the seealso keyword, makes the URL clickable:

/// <summary>
/// Does some work. See <seealso href="www.alwaysdeveloping.net" /> for more information
/// </summary>
public Task DoWorkAsync()
{
    return Task.CompletedTask;
}

Clickable URL in comment

General remarks

Instead of adding a general remark to the summary section, it can instead be added to the remark section:

/// <summary>
/// Does some work.
/// </summary>
/// <remarks>See <seealso href="www.alwaysdeveloping.net" /> for more information</remarks>
public Task DoWorkAsync()
{
    return Task.CompletedTask;
}

Clickable URL in remarks

Sharing comments

Comments can be shared, which is especially useful when one has a method and an async version of the same method. This is done using the inheritdoc and cref keywords:

/// <summary>
/// Does some work, but with parameters supplied
/// </summary>
/// <param name="length">The length of the work</param>
/// <param name="value">The value of the work</param>
/// <param name="extraWork">An action delegate to specify
/// any additional work which might need to be done</param>
public void DoWorkWithParameters(int length, string value, Action extraWork) { }

/// <inheritdoc cref="DoWorkWithParameters(int, string, Action)"/>
public Task DoWorkWithParametersAsync(int length, string value, Action extraWork)
{
    return Task.CompletedTask;
}

Both methods now show the same comments:

Method with comments

Method with inherited comments


Referencing parameters

Parameters can be referenced in the comments using the paramref keyword, making it clearer how the method works and how the parameters are used:

/// <summary>
/// Will check if the job with <paramref name="jobName"/> is in progress or has completed
/// </summary>
/// <param name="jobName">The name of the job to check.
/// If set to null, a check is performed on any job</param>
/// <returns>True if the job specified by <paramref name="jobName"/>
/// is still processing, otherwise false</returns>
public bool IsWorkInProgress(string jobName)
{
    return false;
}

The parameter name is now highlighted whereever it is referenced.

Method using paramref


Language keywords

Language keywords can also be highlighted using langword. If we take the previous example, and update all the C# keywords (true, false) to indicate they are language keywords:

/// <summary>
/// Will check if the job with <paramref name="jobName"/> is in progress or has completed.
/// </summary>
/// <param name="jobName">The name of the job to check.</param>
/// <returns><see langword="true"/> if the job specified by <paramref name="jobName"/>
/// is still processing, otherwise <see langword="false"/></returns>
public bool IsWorkInProgress(string jobName)
{
    return false;
}

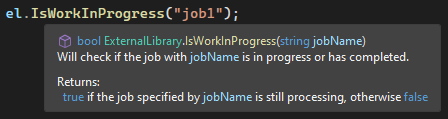

The language keywords are now highlighted:

Language keywords highlighted


Libraries

Updating comments with these features improves the usability of the code - however if developing a shared library (a NuGet package for example), there are some additional steps which need to be done to enable the comments being available to users of the library.

The GenerateDocumentationFile option needs to be enabled in the csproj:

<PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>net6.0</TargetFramework>
    <ImplicitUsings>enable</ImplicitUsings>
    <Nullable>enable</Nullable>
    <GenerateDocumentationFile>true</GenerateDocumentationFile>
</PropertyGroup>

When the code is compiled, an XML file will now be generated containing all the comments - which should then be included as part of the NuGet package to make the comments available.


Notes

As a library author, for public, but mostly for internal corporate packages - I have found adding comments to be very useful in explaining and conveying to the user how a method and class works, lessening the number of questions and queries received. The additional features mentioned above will take the commentary to another level.


References

Nick Craver Tweet

Daily Drop 94: 10-06-2022

At the start of 2022 I set myself the goal of learning one new coding related piece of knowledge a day.
It could be anything - some.NET / C# functionality I wasn't aware of, a design practice, a cool new coding technique, or just something I find interesting. It could be something I knew at one point but had forgotten, or something completely new, which I may or may never actually use.

The Daily Drop is a record of these pieces of knowledge - writing about and summarizing them helps re-enforce the information for myself, as well as potentially helps others learn something new as well.
